Extending ggchangepoint

Youzhi Yu
University of Chicago

This package wraps fifty detectors. It will never wrap all of them, and some of the most interesting ones it cannot wrap: changeforest (Londschien et al. 2023) is on conda-forge only, ChangepointInference (Jewell et al. 2022) is on GitHub only, gfpop and cpss were removed from CRAN, deep-learning detectors live in Python, and your in-house method lives with you.

That is a smaller problem than it looks, because almost nothing in this package is about the detectors. autoplot(), the geoms, tidy(), glance(), augment(), cpt_metrics(), cpt_consensus(), cpt_stability(), cpt_benchmark() and cpt_report() all speak to the ggcpt contract, not to any engine. Two functions let anything into it.

as_ggcpt(): changepoints in, result out

The one-off case: you have locations from somewhere else and want the package’s machinery.

set.seed(2026)
x <- c(rnorm(100), rnorm(100, 4), rnorm(100, 1))

# Pretend these came from a Python detector, a paper, or an analyst.
external <- c(101, 199)

fit <- as_ggcpt(external, x, method = "ruptures::Pelt",
                cp_convention = "right")
fit
#> ggcpt (changepoint detection result)
#>   Method:         ruptures::Pelt
#>   Change in:       mean
#>   Changepoints found: 2
#>   CP convention:   left
#>   Penalty:         user
#>   Series length:   300
#>
#> Changepoints:
#> # A tibble: 2 × 2
#>      cp cp_value
#>   <int>    <dbl>
#> 1   100    0.369
#> 2   198    2.41

cp_convention = "right" matters: some engines report the first index of the new segment and some the last index of the old one, and getting it wrong shifts every location by one. The conversion happens on the way in, so the stored result is always on this package’s convention.

Everything now works:

tidy(fit)
#> # A tibble: 2 × 2
#>      cp cp_value
#>   <int>    <dbl>
#> 1   100    0.369
#> 2   198    2.41
glance(fit)
#> # A tibble: 1 × 9
#>       n n_changepoints method change_in penalty_type penalty_value cp_convention
#>   <int>          <int> <chr>  <chr>     <chr>                <dbl> <chr>
#> 1   300              2 ruptu… mean      user                    NA left
#> # ℹ 2 more variables: total_cost <dbl>, runtime <dbl>
cpt_metrics(tidy(fit)$cp, truth = c(100, 200), n = 300)
#> # A tibble: 1 × 12
#>       n n_pred n_truth precision recall    f1 covering hausdorff rand_index
#>   <int>  <int>   <int>     <dbl>  <dbl> <dbl>    <dbl>     <dbl>      <dbl>
#> 1   300      2       2         1      1     1    0.987         2      0.980
#> # ℹ 3 more variables: annotation_error <int>, mae_matched <dbl>,
#> #   rmse_matched <dbl>

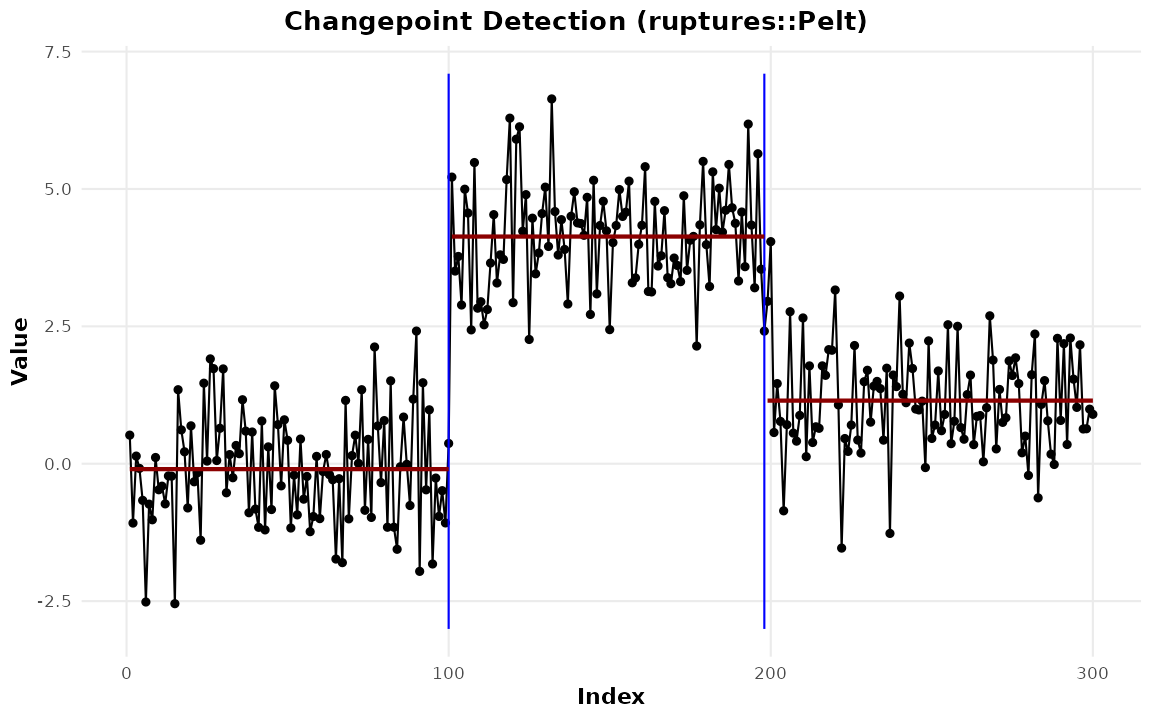

autoplot(fit, show_segments = TRUE)

as_ggcpt() runs the same contract checks as every built-in wrapper — sorting, de-duplication, range checks, aligned extra columns, derived segments — so an external result cannot violate the invariants the rest of the package relies on:

tidy(as_ggcpt(c(150, 150, 9999, NA, 50), x))$cp
#> [1]  50 150

It also takes the optional extras, so a detector that reports uncertainty does not have to throw it away:

with_ci <- as_ggcpt(c(100, 200), x, method = "external",
                    ci = cbind(c(95, 192), c(107, 205)),
                    extra = list(score = c(12.4, 8.1)))
tidy(with_ci)
#> # A tibble: 2 × 5
#>      cp cp_value ci_lower ci_upper score
#>   <int>    <dbl>    <int>    <int> <dbl>
#> 1   100    0.369       95      107  12.4
#> 2   200    4.04       192      205   8.1

cpt_register_method(): dispatch by name

The repeatable case: you want cpt_detect(x, method = "yours") and everything that keys off a method name.

cpt_register_method(
  "biggest_jump",
  fn = function(x, window = 1, ...) {
    d <- abs(diff(as.numeric(x)))
    which.max(stats::filter(d, rep(1, window) / window, sides = 2))
  },
  change_in = "mean",
  engine = "example",
  citation = "No citation supplied (illustration only)."
)

res <- cpt_detect(x, method = "biggest_jump", window = 5)
res
#> ggcpt (changepoint detection result)
#>   Method:         biggest_jump  [user-registered]
#>   Change in:       mean
#>   Changepoints found: 1
#>   CP convention:   left
#>   Penalty:         MBIC
#>   Series length:   300
#>
#> Changepoints:
#> # A tibble: 1 × 2
#>      cp cp_value
#>   <int>    <dbl>
#> 1    92     1.47
#>
#> This result came from a user-registered detector; the package validated
#> its shape, not its statistics. See ?cpt_register_method.

Note what the print method says. A registered method is visibly user-supplied everywhere it appears:

subset(cpt_methods(), status == "registered")
#> # A tibble: 1 × 15
#>   method       change_in engine  status    installed target_release multivariate
#>   <chr>        <chr>     <chr>   <chr>     <lgl>     <chr>          <lgl>
#> 1 biggest_jump mean      example register… NA        NA             FALSE
#> # ℹ 8 more variables: univariate <lgl>, online <lgl>, ci <lgl>, fitted <lgl>,
#> #   posterior <lgl>, statistic <lgl>, path <lgl>, scale_space <lgl>
cpt_cite("biggest_jump")
#> [biggest_jump] No citation supplied (illustration only).

The package validates the shape of what your function returns; it does not and cannot validate the method. That distinction is the reason for the labelling, and it is why cpt_cite() says plainly when no citation was given rather than inventing one.

Registered methods take part in everything that keys off a method name:

cpt_consensus(x, methods = c("pelt", "binseg", "biggest_jump"),
              min_votes = 2)
#> ggcpt_consensus (3 methods, tolerance 5, threshold 2 vote(s))
#>   Methods: pelt, binseg, biggest_jump
#>   Consensus changepoints: 2
#>
#> # A tibble: 2 × 5
#>      cp cp_value votes methods                    spread
#>   <int>    <dbl> <int> <chr>                       <int>
#> 1   100    0.369     3 biggest_jump, binseg, pelt      0
#> 2   200    4.04      2 binseg, pelt                    0
#>
#> Agreement is a robustness display, not a significance test; see ?cpt_consensus.
cpt_benchmark(cpt_datasets(n = 200, seed = 1, names = c("step", "teeth")),
              methods = c("pelt", "biggest_jump"), progress = FALSE)
#> ggcpt_benchmark (2 dataset(s) x 2 method(s), tolerance 5)
#>
#> Mean rank across datasets (1 = best):
#> # A tibble: 2 × 3
#>   method       mean_rank n_datasets
#>   <chr>            <dbl>      <int>
#> 1 pelt              1.25          2
#> 2 biggest_jump      1.75          2
#>
#> # A tibble: 4 × 4
#>   dataset method       covering    f1
#>   <chr>   <chr>           <dbl> <dbl>
#> 1 step    pelt            0.952     1
#> 2 teeth   pelt            1         1
#> 3 step    biggest_jump    0.362     0
#> 4 teeth   biggest_jump    1         1

cpt_unregister_method("biggest_jump")

Registration is session state. It is deliberately not persisted to disk: a script that behaved differently depending on what some earlier script had run would be worse than the problem it solved.

Returning a finished result

fn may return a bare vector of indices, as above, or a finished ggcpt built with as_ggcpt() — which is how you pass along an engine’s confidence intervals, fitted signal or raw fit object:

cpt_register_method(
  "smoothed_jump",
  fn = function(x, ...) {
    sm <- stats::filter(x, rep(1, 11) / 11, sides = 2)
    sm[is.na(sm)] <- x[is.na(sm)]
    as_ggcpt(which.max(abs(diff(sm))), x, fitted = as.numeric(sm))
  },
  engine = "example"
)

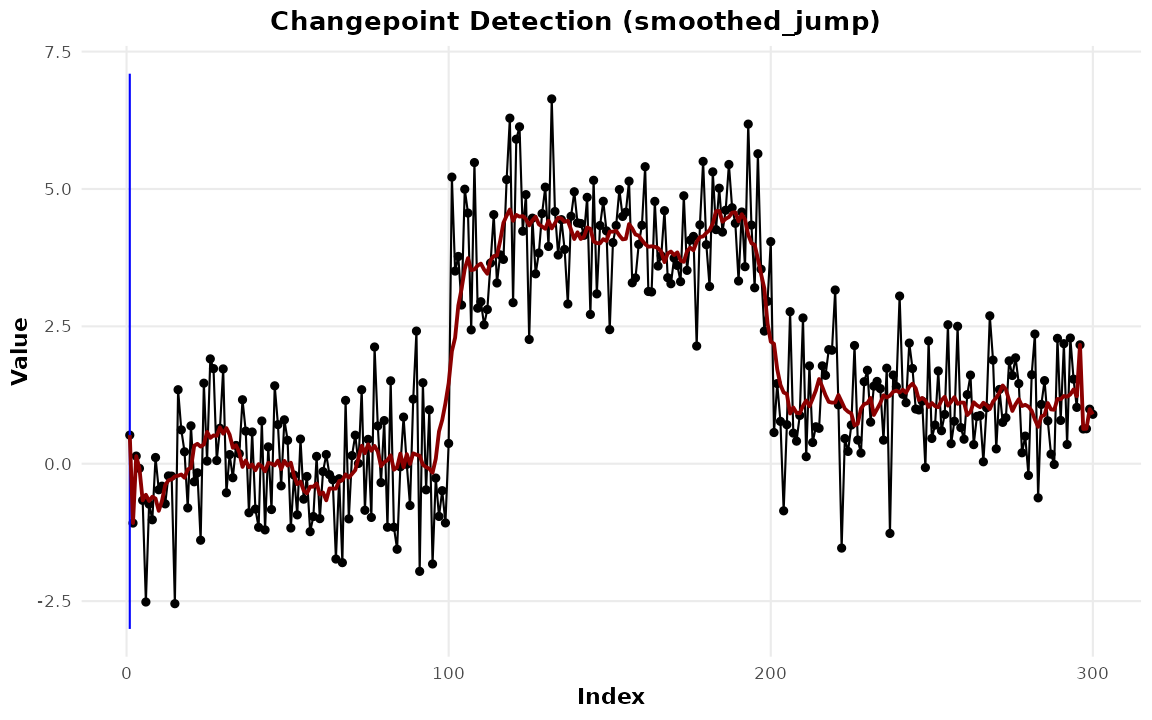

autoplot(cpt_detect(x, method = "smoothed_jump"), show_fit = TRUE)

cpt_unregister_method("smoothed_jump")

Recipe: a Python detector through reticulate

ruptures is the standard Python changepoint library. The recipe is four lines, and this package never depends on reticulate to support it:

library(reticulate)
rpt <- import("ruptures")

cpt_register_method(
  "ruptures_pelt",
  fn = function(x, model = "l2", pen = 10, ...) {
    algo <- rpt$Pelt(model = model)$fit(matrix(as.numeric(x), ncol = 1))
    # ruptures returns 1-based *right* endpoints, with n as the last entry
    as.integer(unlist(algo$predict(pen = pen)))
  },
  change_in = "mean",
  engine = "ruptures (Python)",
  cp_convention = "left",
  citation = paste("Truong, C., Oudre, L. and Vayatis, N. (2020).",
                   "Selective review of offline change point detection",
                   "methods. Signal Processing, 167, 107299.")
)

cpt_detect(x, method = "ruptures_pelt", pen = 20)

The same shape works for a detector loaded from GitHub, a compiled binary called through system2(), or a neural network scored in torch: if it returns changepoint indices, it joins the grammar.

Reducing the install

The other side of extensibility is not needing everything. Only three engines are hard dependencies. cpt_methods() reports what is installed, and cpt_install_engines() installs a family at a time:

cpt_install_engines("bayesian")
cpt_install_engines(c("highdim", "functional"), dry_run = TRUE)

tab <- cpt_methods()
table(status = tab$status, installed = tab$installed, useNA = "ifany")
#>            installed
#> status      TRUE <NA>
#>   available   50    0
#>   planned      0    5

What the contract is

If you are writing a wrapper of your own, this is the whole contract, and as_ggcpt() enforces all of it:

• $changepoints is a tibble with at least cp (integer, sorted, de-duplicated, in 1..n-1, on the “left” convention) and cp_value; engine extras such as ci_lower/ci_upper or posterior_prob are additional columns aligned to those rows.
• $segments has one row per segment (seg_id, start, end, n, param_estimate) and always has one more row than $changepoints.
• $data has index (positions 1..n) and value, plus fitted when an engine supplies a signal and index_value when the result carries a time index.
• $method, $change_in, $penalty, $cp_convention are length-one metadata; $fit is the raw upstream object.
• The optional slots — data_wide, index, regions, diagnostics, registered — are absent unless something supplies them, so is.null(fit$regions) is the test for “this engine does not do regions”.

References

Jewell, Sean, Paul Fearnhead, and Daniela Witten. 2022. “Testing for a Change in Mean After Changepoint Detection.” Journal of the Royal Statistical Society: Series B 84 (4): 1082–104. https://doi.org/10.1111/rssb.12501.

Londschien, Malte, Peter Bühlmann, and Solt Kovács. 2023. “Random Forests for Change Point Detection.” Journal of Machine Learning Research 24 (216): 1–45.
