Colour scales for changepoint labels and label errors

A colour-vision-deficiency-safe fill scale covering both vocabularies the supervised-detection displays use: the label's assertion (change / no_change / one_change) and the outcome of scoring a segmentation against it (correct / false_positive / false_negative). Unknown values fall back to grey rather than erroring, so a partially-scored frame still plots.

Usage

scale_fill_cpt_label(..., na.value = "grey70")

scale_colour_cpt_label(..., na.value = "grey70")

Arguments

...

Passed to ggplot2::scale_fill_manual() / ggplot2::scale_colour_manual().

na.value

Fill for values outside the vocabulary.

Value

A ggplot2 scale.

See also

Other accessibility scales: scale_colour_cpt(), theme_ggcpt()

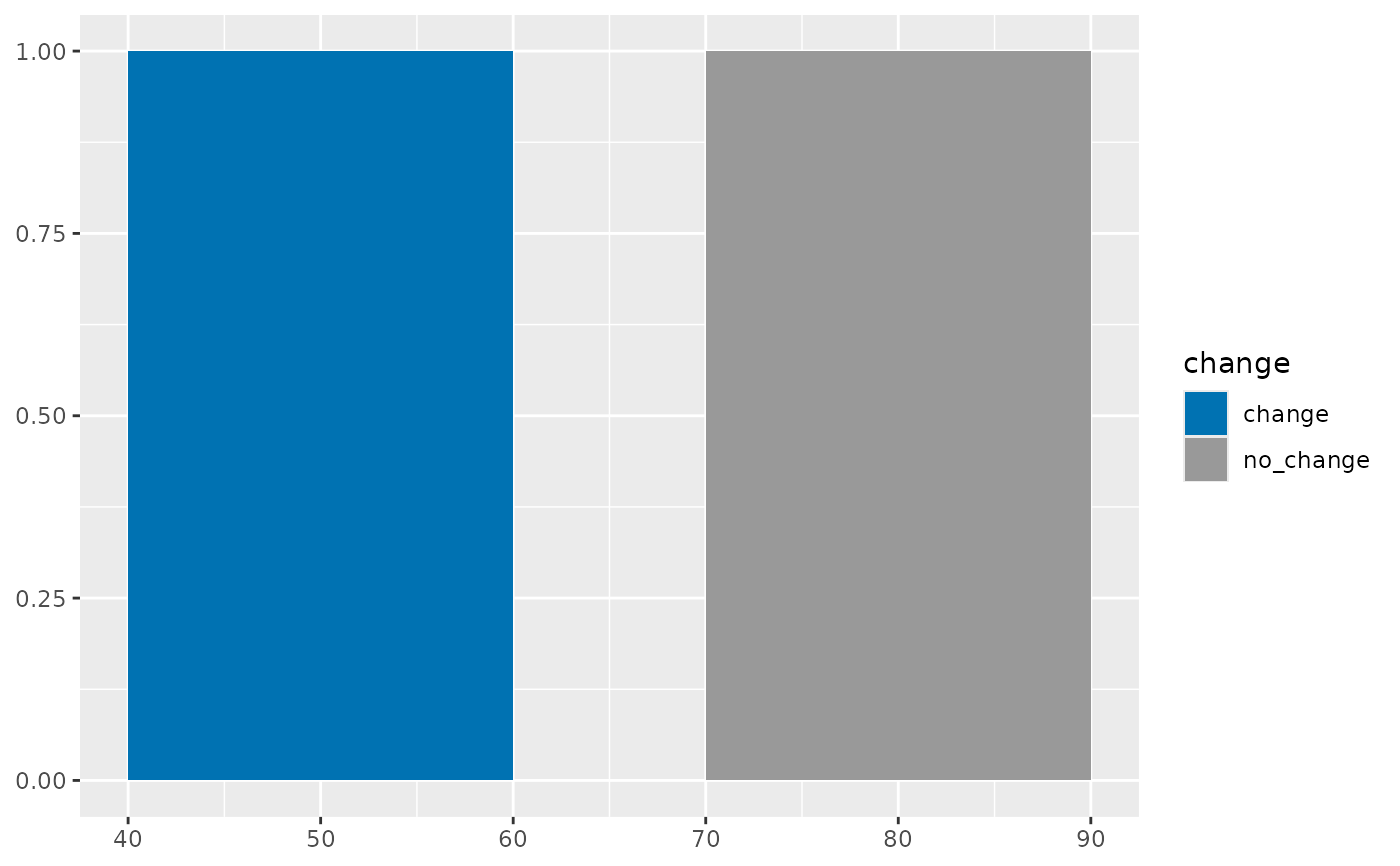

Examples

library(ggplot2)
labs <- cpt_labels(c(40, 70), c(60, 90), c("change", "no_change"))
ggplot(labs, aes(xmin = start, xmax = end, ymin = 0, ymax = 1,
                 fill = change)) +
  geom_rect() + scale_fill_cpt_label()

# the same palette covers correct / false_positive / false_negative
class(scale_colour_cpt_label())
#> [1] "ScaleDiscrete" "Scale"         "ggproto"       "gg"
