Two-variable bivariate choropleth — bivariate

A 2-D bivariate choropleth with a built-in 2-D legend (via the optional biscale package), e.g. GDP per capita x life expectancy in one map.

Usage

bivariate_map(
  data,
  fill_x,
  fill_y,
  palette = "GrPink",
  dim = 3,
  projection = "equal_earth",
  footnote = "auto"
)

Arguments

data: An sf map-ready frame (use geometry = "sf").
fill_x, fill_y: The two value columns (unquoted).
palette: A biscale palette name (default "GrPink").
dim: Bivariate dimension: classes per variable, 2, 3 (default) or 4. A 4 x 4 map needs a palette that has one, such as "GrPink2".
projection: Projection; see world_map() for the ones available.
footnote: The caption, as in world_map(): "auto" (default) states the coverage and source, a string is used as given, FALSE adds nothing.

Value

A ggplot object (the map; combine with biscale::bi_legend() for a standalone legend).

Backend

The sf backend only, since biscale classes an sf frame; drawn in projection (Equal Earth by default).

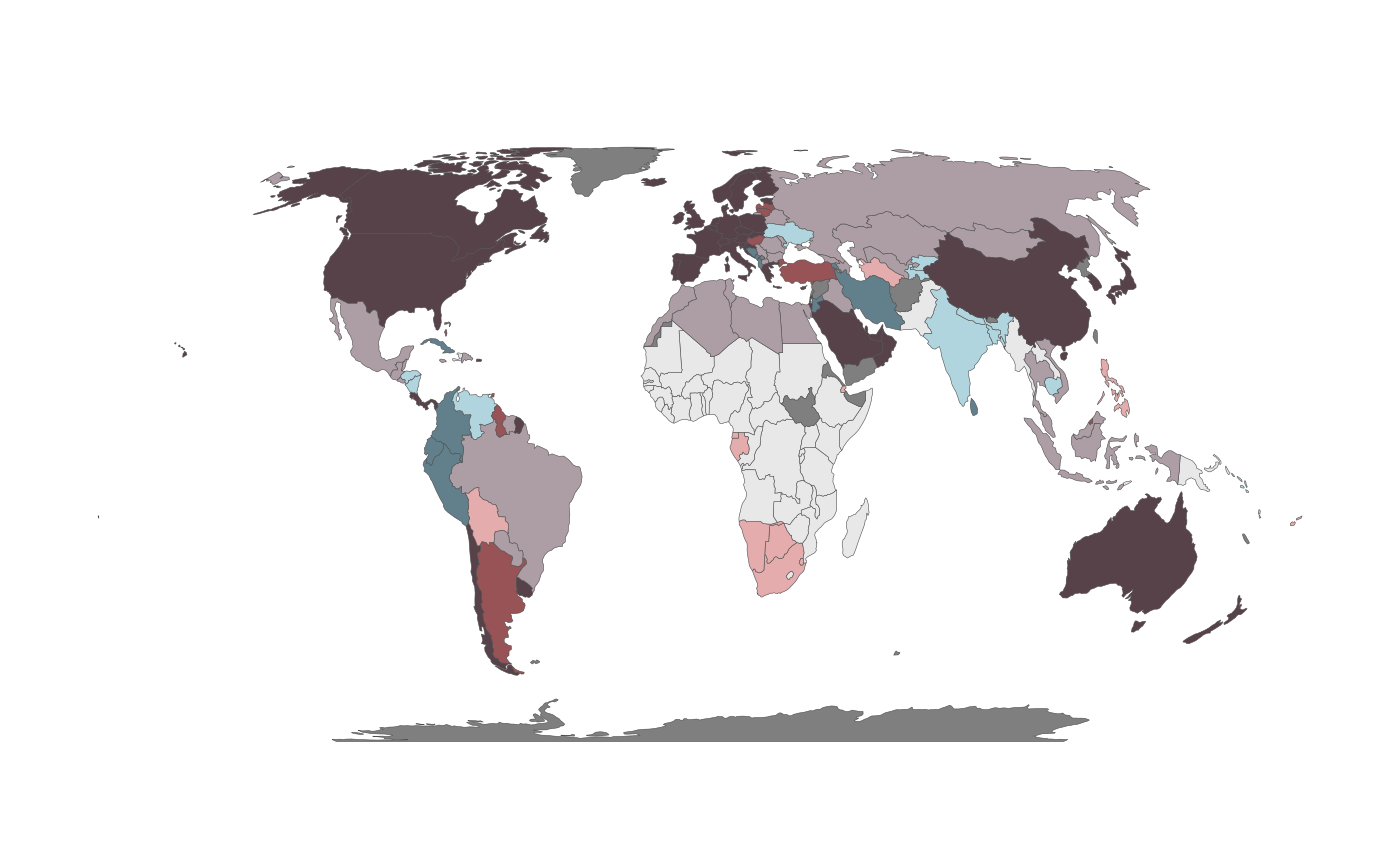

Examples

# \donttest{
if (requireNamespace("sf", quietly = TRUE) &&
    requireNamespace("rnaturalearth", quietly = TRUE) &&
    requireNamespace("biscale", quietly = TRUE)) {
  attach_geometry(countryatlas::world_snapshot$countries, geometry = "sf") |>
    bivariate_map(gdp_per_capita, life_expectancy)
}

# }
