Taichi — geom_taichi • ggtaichi

The taichi geom turns each cell of a heatmap-like grid into a taichi (yin-yang) diagram. The two interlocking "fish" of the diagram use luminance to show the values from two data sources on the same plot, so four dimensions of data can be expressed at once: the x and y position of every taichi symbol plus the yin and yang values that fill its two halves. With the optional eyes enabled and mapped to data (see eyes, yin_eye_size, yang_eye_size), a single glyph can carry up to six dimensions.

Usage

geom_taichi(
  yin,
  yang,
  yin_name = NULL,
  yang_name = NULL,
  yin_colors = c("gray100", "gray85", "gray50", "gray35", "gray0"),
  yang_colors = c("#FED7D8", "#FE8C91", "#F5636B", "#E72D3F", "#C20824"),
  palette = NULL,
  yin_scale = NULL,
  yang_scale = NULL,
  angle = NULL,
  eyes = FALSE,
  yin_eye_size = 0.15,
  yang_eye_size = 0.15,
  yin_eye_colour = NULL,
  yang_eye_colour = NULL,
  explicit = c("none", "difference", "ratio", "log_ratio", "z"),
  explicit_channel = c("eye_size", "angle", "border", "radius"),
  explicit_range = NULL,
  radius_exponent = 0.57,
  interactive = FALSE,
  tooltip = NULL,
  data_id = NULL,
  onclick = NULL,
  data_id_by = c("cell", "fish", "source"),
  shared_limits = FALSE,
  shared_legend = FALSE,
  width = NULL,
  height = NULL,
  alpha = NA,
  na.rm = FALSE,
  colour = NA,
  linewidth = 0.1,
  linetype = 1,
  show.legend = NA,
  key_glyph = NULL,
  ...
)

Arguments

yin: The unquoted column name (or a literal string naming a column) for the yin (dark) fish of the taichi symbol. To pass a name held in a variable, use .data[[nm]] or !!rlang::sym(nm) — a bare variable would be mapped as a constant fill, exactly as it would be inside aes().
yang: The unquoted column name (or a literal string naming a column) for the yang (light) fish of the taichi symbol, as yin.
yin_name: The label name (in quotes) for the legend of the yin rendering. Default is NULL (uses the column name).
yang_name: The label name (in quotes) for the legend of the yang rendering. Default is NULL (uses the column name).
yin_colors: A color vector, usually as hex codes, for the yin fish fill. Used as a gradient for continuous data and as a discrete palette for factor/character data. Ignored if yin_scale is provided.
yang_colors: A color vector, usually as hex codes, for the yang fish fill. Used as a gradient for continuous data and as a discrete palette for factor/character data. Ignored if yang_scale is provided.
palette: A matched pair of ramps to use instead of yin_colors / yang_colors: the name of a taichi_palette() preset ("balanced", "diverging", "viridis_pair", "brewer_pair", "greyscale_safe", "default") or a list with yin and yang colour vectors, such as the result of taichi_palette_pair(). Default NULL, which keeps the package's historical grey / seal-red pair. See the Palettes section.
yin_scale: An optional fill scale for the yin fish: either a ready scale object or a scale constructor function (e.g. ggplot2::scale_fill_viridis_d). Overrides auto-detection. It must govern a fill aesthetic; a scale for another aesthetic (say scale_colour_viridis_c) is rejected with an error rather than quietly leaving the fish on the default gradient.
yang_scale: An optional fill scale for the yang fish, as yin_scale.
angle: Rotation of each glyph in degrees, counter-clockwise: either a single number or an unquoted column name (one angle per cell). A mapped column must be numeric.
eyes: Logical. If TRUE, draws the classic taichi eyes (dots), each centred in its fish's head. Default FALSE, preserving the plain v0.1.0 look.
yin_eye_size, yang_eye_size: Size of each eye as a proportion of the glyph radius: a constant (default 0.15) or an unquoted data column to encode a variable (see the Eyes section for the rescaling rule).
yin_eye_colour, yang_eye_colour: Colour of each eye dot: a constant, an unquoted data column containing colour strings, or NULL (the default) to take the colour from the theme — the yin eye from the theme's paper and the yang eye from its ink, which is white and black on every light theme and swaps on a dark one. On ggplot2 before 4.0.0, where themes cannot set geom defaults, NULL falls back to the literal "white" and "black".
explicit: Which relationship between the two sources to compute and show as a third channel: "none" (the default), "difference", "ratio", "log_ratio" or "z". See the Explicit encoding section, and taichi_summary() for the definitions.
explicit_channel: Where the computed statistic goes: "eye_size" (the default), "angle", "border" or "radius". Ignored when explicit = "none". The chosen channel cannot also be set by hand — e.g. explicit_channel = "angle" together with an angle argument is an error rather than a silent override.
explicit_range: Two numbers giving the output range of explicit_channel, or NULL (the default) for that channel's own sensible range.
radius_exponent: Only used by explicit_channel = "radius": the exponent relating the statistic to the glyph radius. 0.5 is strict area scaling; the default 0.57 is the cartographic apparent-magnitude (Flannery) compensation, which makes larger symbols slightly larger than the geometry alone would give because readers systematically underestimate the area ratio between big and small circles.
interactive: If TRUE, draw the fish (and their eyes) as ggiraph grobs carrying tooltip, data_id and onclick, so that ggiraph::girafe() turns the plot into a widget. Needs the ggiraph package. Default FALSE, which renders exactly as before and does not touch ggiraph. See the Interactivity section.
tooltip, data_id, onclick: Optional unquoted data columns overriding the interactive attributes. Used only when interactive = TRUE; by default tooltip is built from the two values, their difference and the cell's coordinates, data_id from data_id_by, and onclick is empty.
data_id_by: Scope of the default data_id, i.e. what one hover highlights: "cell" (both fish of that glyph; the default), "fish" (one fish), or "source" (every fish of that source, in every cell). Ignored when data_id is supplied.
shared_limits: If TRUE and both sources are of the same type (both continuous, or both discrete), the two auto-built fill scales share common limits — the union range (or union of levels) of yin and yang — so equal values read as equal ink. Explicit limits passed through ... take precedence. As of 0.3.0 the shared limits are also pushed into a custom yin_scale / yang_scale that does not set limits of its own, so a supplied binned scale shares breaks too. Default FALSE.
shared_legend: If TRUE, treats the two sources as directly comparable: implies shared_limits = TRUE, paints both fish with yin_colors, and shows a single legend (the yang guide is dropped). Unless yin_name is supplied, the legend is titled "yin / yang". Default FALSE. This is the perceptually correct choice whenever the two sources really are directly comparable: one ramp means equal values are equal ink by construction, with no palette pairing to get wrong (see the Palettes section). The cost is that the sources are then told apart only by their position inside the glyph — yin is the top bulb, yang the bottom. When a custom yang_scale is supplied it is used as given, so making the two palettes agree is then your business; the duplicate yang guide is dropped either way.
width, height: Width and height of each cell. Typically omitted.
alpha: Alpha transparency for the fish fills. A single value for the whole layer (see the Styling section).
na.rm: If TRUE, silently removes rows with missing values.
colour: Outline colour of the fish. A single value for the whole layer (see the Styling section).
linewidth: Outline width of the fish (in mm). Replaces the deprecated size aesthetic of ggtaichi 0.1.0. A single value for the whole layer (see the Styling section).
linetype: Outline linetype of the fish. A single value for the whole layer (see the Styling section).
show.legend: Logical. Should the layer be included in the legend?
key_glyph: The legend key glyph, passed on to layer(). Both fish default to a small taichi with their own half filled (see draw_key_taichi()); pass "rect" for the plain ggplot2 rectangles of earlier versions. Keys only appear for discrete fills — a continuous fill gets a colourbar.
...: Additional arguments passed to both auto-built fill scales (e.g., shared limits or na.value). Because they go to both, an argument that suits only one kind of scale will be rejected by the other when yin and yang are of different types — for instance a numeric limits draws ggplot2's "Continuous limits supplied to discrete scale" warning from the discrete fish. For per-fish scale options, supply yin_scale / yang_scale instead. The scale arguments geom_taichi() fills in itself — name, values and colors / colours — are not accepted here; use yin_name / yang_name and yin_colors / yang_colors.

Value

A ggtaichi_plot object: the two fish layers plus the fill scales they need, ready to be added to a ggplot with +. It is not a plot on its own.

Details

A seventh channel, angle, rotates the glyph, and explicit adds an eighth that is computed rather than mapped: the relationship between the two sources, shown as a third channel of the same mark. See the Explicit encoding section.

Discrete and continuous fills

geom_taichi() inspects the plot data at + time. A numeric yin / yang column gets a continuous scale_fill_gradientn built from yin_colors / yang_colors; a factor, character, or logical column (including computed expressions such as factor(week)) gets a discrete scale_fill_manual whose palette is interpolated from the same color vectors. With the default vectors the discrete palette skips the palest end of the ramp so that no category is invisible on a white panel; an explicitly supplied color vector is used as-is. Supply yin_scale / yang_scale to override the automatic choice entirely.

The automatic discrete palette samples a sequential ramp, which implies that the levels are ordered. That suits an ordered factor and overstates an unordered one: if your categories have no natural order, supply a qualitative palette through yin_colors / yang_colors or a scale through yin_scale / yang_scale, so the fill does not assert a ranking the data does not have.

Because the choice is made when the layer is added, replacing the plot's data afterwards keeps the scales picked for the original data. Swapping in data of the same types is fine; if the new yin / yang columns are of the other kind, ggplot2 reports a "Discrete value supplied to a continuous scale" (or the reverse) at draw time — rebuild the plot rather than substituting its data.

Eyes

eyes = TRUE draws the classic taichi dots, each sitting in its own fish's head: the yin eye in the top bulb, the yang eye in the bottom bulb. The size and colour arguments accept either a constant or an (unquoted) data column, so the eyes can encode up to two further variables. A mapped eye-size column is rescaled to radii between 0.05 and 0.3 of the glyph radius, unless all its non-zero values already lie in (0, 0.5], in which case they are used directly as radius proportions. Cells whose eye size is NA or 0 are drawn without an eye, so a column may mix proportions with zeros to suppress individual eyes. A column whose values are all equal gets the midpoint radius, 0.175.

Styling

alpha, colour, linewidth and linetype are layer-wide constants here. Each has a concrete default, so geom_taichi() always passes it to both fish layers as a parameter, and a parameter takes precedence over an inherited mapping: a plot-level aes(linewidth = ...) (or alpha, colour, linetype) has no effect on the glyphs. To drive one of those from a column, build the layers yourself with geom_yin_fish() / geom_yang_fish(), which take all four as ordinary aesthetics.

width and height behave differently, because they default to NULL and are forwarded only when you actually supply them: a plot-level aes(width = ...) does size the cells per row. So the data-driven channels of geom_taichi() are yin, yang, angle, the two eyes, and width / height via aes().

Missing values

A fish whose fill value is NA is painted in the scale's na.value colour (pass e.g. na.value = "transparent" through ... to change it), while na.rm = TRUE silently drops rows with missing positions.

Time on an axis

Putting time on x makes each row of the grid a time series drawn as a row of discrete glyphs, and the series is then encoded in fill rather than in position — so slope is not encoded at all, and a reader infers a trend by comparing the shade of neighbouring cells. That is a poor substitute for a line. Use a taichi grid for the question which series differ from each other, and where; put a line chart or a horizon plot beside it for what is the trend.

Explicit encoding

Two fish sharing one position is a superposition comparison. It is very good at "are these similar?" and "which is bigger here?", and it cannot answer "by how much?" — that needs the relationship itself to be computed and drawn. explicit does exactly that, turning one of "difference" (yin - yang), "ratio", "log_ratio" or "z" into a third channel of the glyph. The statistics are the ones taichi_summary() tabulates, including its rule that a ratio of a non-positive value is NA rather than Inf.

explicit_channel chooses where it goes:

"eye_size": The default, and the tidiest: the eyes already exist and are visually subordinate to the fills, so the two fish keep carrying the two sources while eye size carries the gap between them. A big eye reads as "look here", which is what a big gap means. Cells where the two sources agree exactly get no eye at all, so a plain glyph means agreement. Implies eyes = TRUE.
"angle": The most accurate option. Direction and angle are read far more precisely than shading, so encoding the gap as tilt makes it legible to a precision the fills can never reach: an upright glyph means the two sources agree and the lean shows which way and how far. The cost is the symbol's upright orientation, which is why it is a choice rather than the default.
"border": Outline width. Unobtrusive, and it composes with everything else, but the least precise of the four. Because the default colour is NA — no outline at all — this channel gives the outline a visible colour unless you set colour yourself.
"radius": Glyph size, scaled by area (radius proportional to the square root of the statistic) so that the eye's area-based reading is the correct one. Cells where the sources agree shrink; use it when the interesting thing is where they disagree.

explicit_range sets the channel's output range; each channel has a sensible default (c(0, 0.3) of the glyph radius for eyes, c(-45, 45) degrees for angle, c(0, 1) mm for the border, c(0.4, 1) of the cell for radius). The statistic is rescaled across the whole layer, so the mapping is comparable between facets.

geom_taichi_diff() draws the same statistic as a diverging heatmap when the glyph is not the right chart for the question, and taichi_summary() returns it as a table.

Palettes

The two ramps are compared against each other, so they need to be matched: if one spans a wider luminance range than the other then equal values do not read as equal ink and one fish looks heavier wherever the data says the sources are level. The default grey-and-red pair is not matched (run taichi_check_palette() with no arguments to see the numbers) and is kept only for continuity. palette selects a matched pair instead — "balanced" is the recommended one — and also accepts the output of taichi_palette_pair(). It is a shorthand for setting yin_colors and yang_colors together, so passing both is an error.

Interactivity

Fill is the least accurate channel there is, which is why an interactive version of a taichi grid is not a gimmick: hovering supplies the exact values without giving up the encoding. With interactive = TRUE the layers emit ggiraph grobs, and the plot becomes a widget when it is passed to ggiraph::girafe():

  p <- ggplot(cafes_tg, aes(week, neighbourhood)) +
    geom_taichi(yin = matcha, yang = espresso, interactive = TRUE)
  ggiraph::girafe(ggobj = p)

The default tooltip carries both values, their difference, and the cell's coordinates. data_id_by decides what a hover highlights: "cell" (the default) lights up both fish of one glyph, "fish" one fish at a time, and "source" every fish of one source at once — which turns the superposition display into a single-source display for as long as the pointer rests there, letting a reader decompose the comparison instead of doing it in their head. tooltip, data_id and onclick take a data column to override any of it.

The static rendering is unchanged: with interactive = FALSE the package does not touch ggiraph at all, and with it TRUE the same geometry is drawn, only in grobs that carry the extra attributes. plotly is not and will not be supported — ggplotly() cannot translate custom grobs, which is exactly what this package draws.

Examples

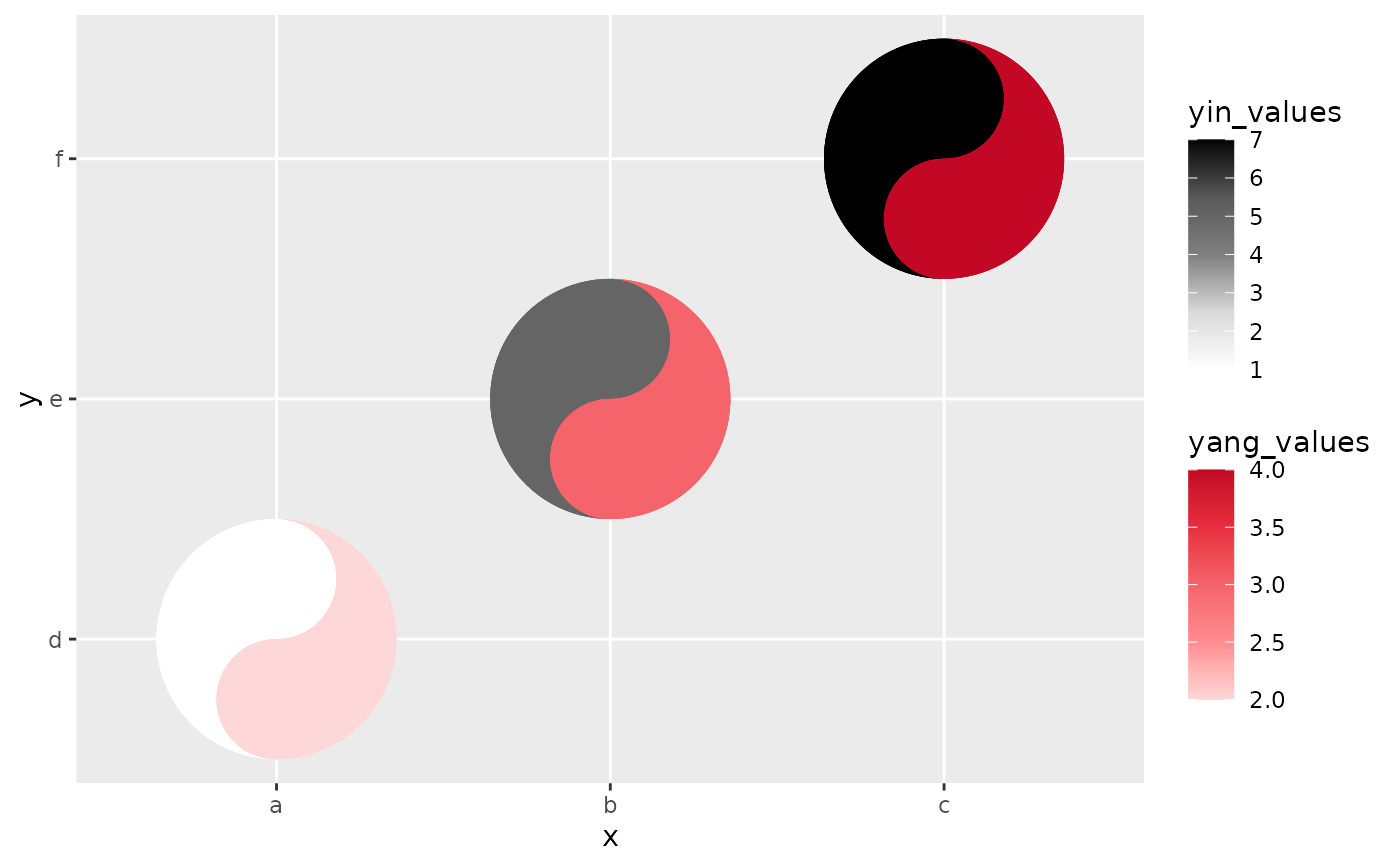

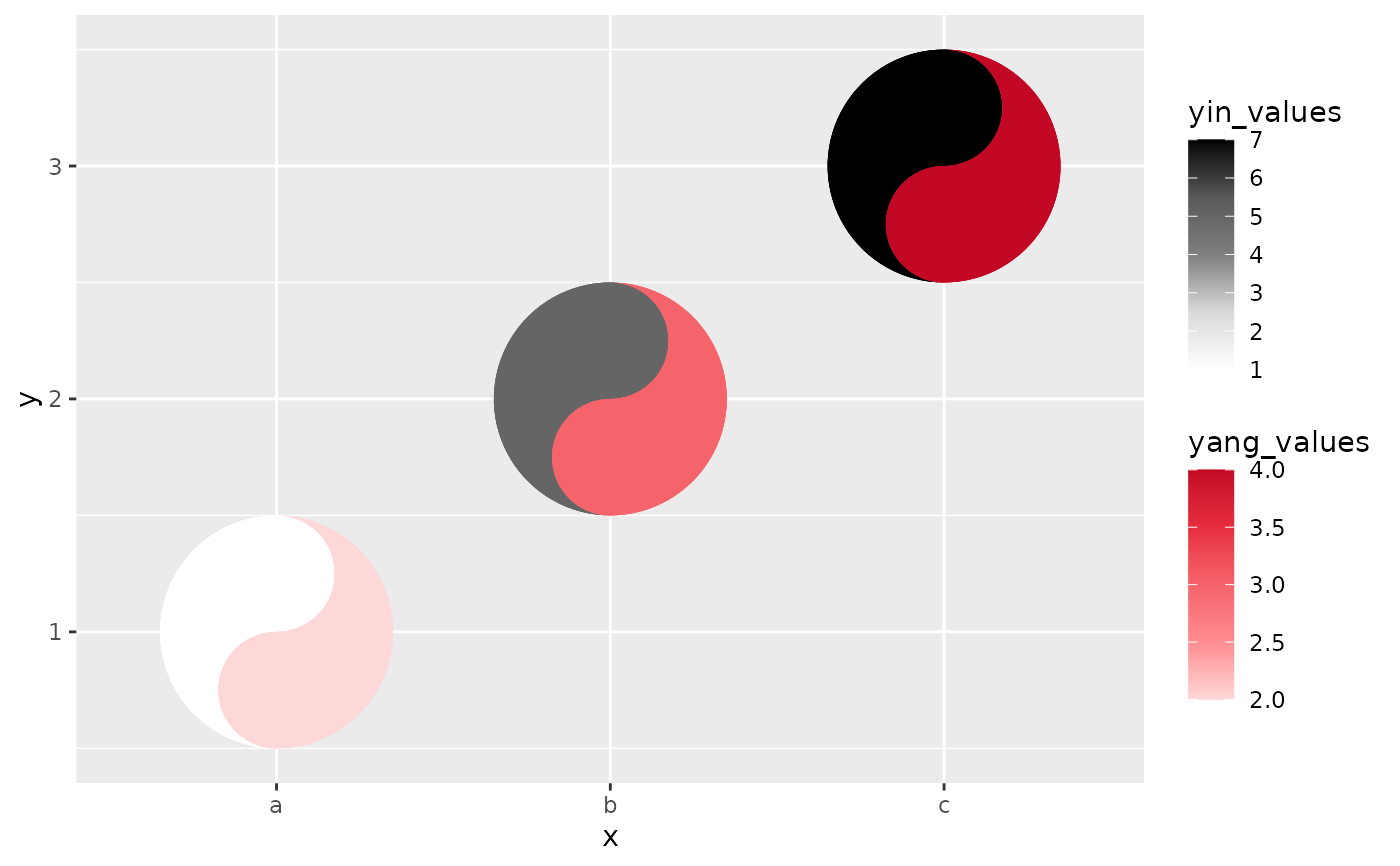

library(ggplot2)

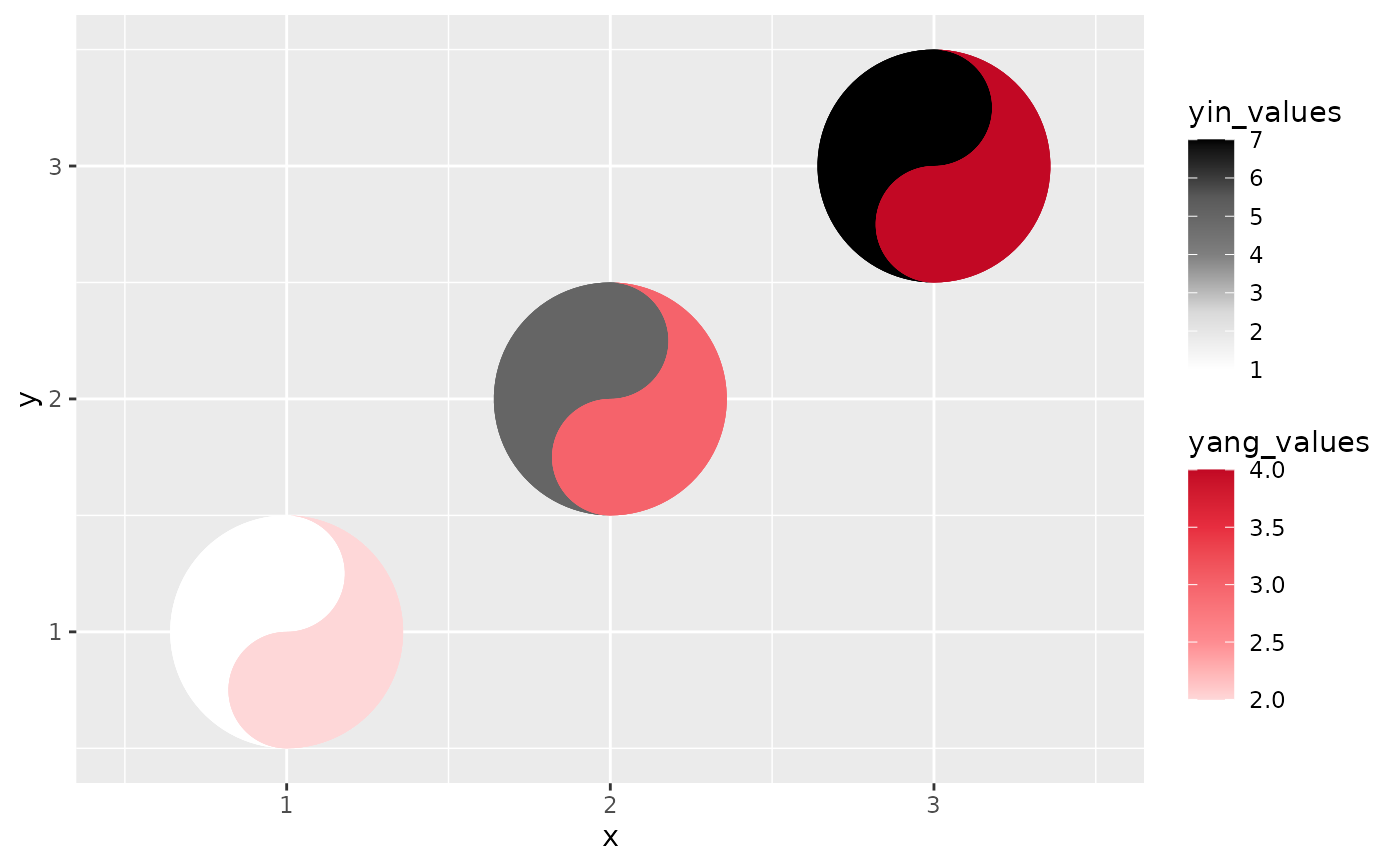

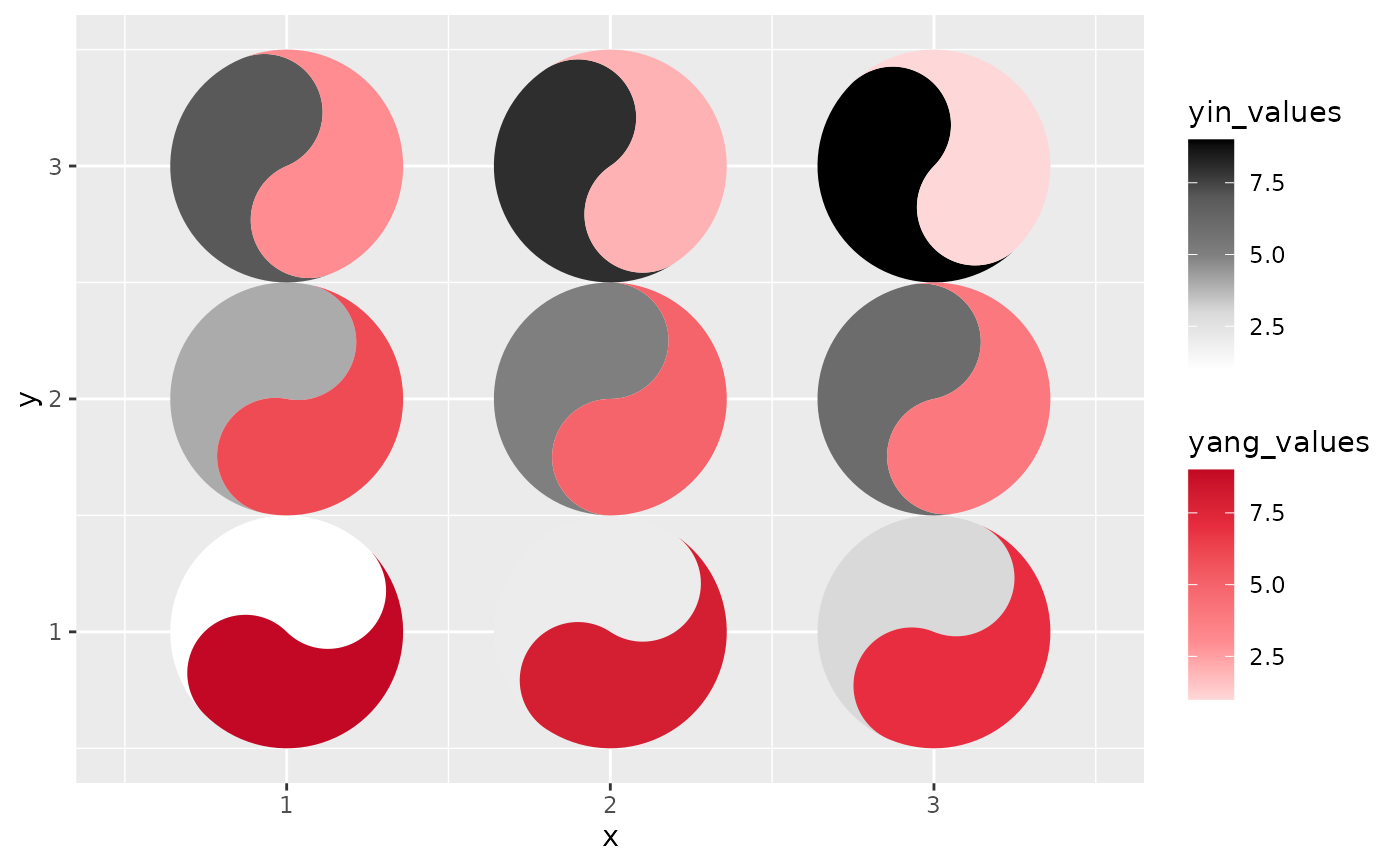

# taichi with numeric fills

data <- data.frame(x = rep(c(1, 2, 3), 3),
                   y = rep(c(1, 2, 3), each = 3),
                   yin_values = 1:9,
                   yang_values = 9:1)

ggplot(data, aes(x, y)) +
  geom_taichi(yin = yin_values,
              yang = yang_values)


# categorical (discrete) fills are detected automatically

data$yin_class <- rep(c("low", "mid", "high"), 3)

ggplot(data, aes(x, y)) +
  geom_taichi(yin = yin_class,
              yang = yang_values)


# classic eyes, rotation, and data-driven eye sizes

ggplot(data, aes(x, y)) +
  geom_taichi(yin = yin_values,
              yang = yang_values,
              eyes = TRUE,
              yin_eye_size = yang_values,
              angle = 45)

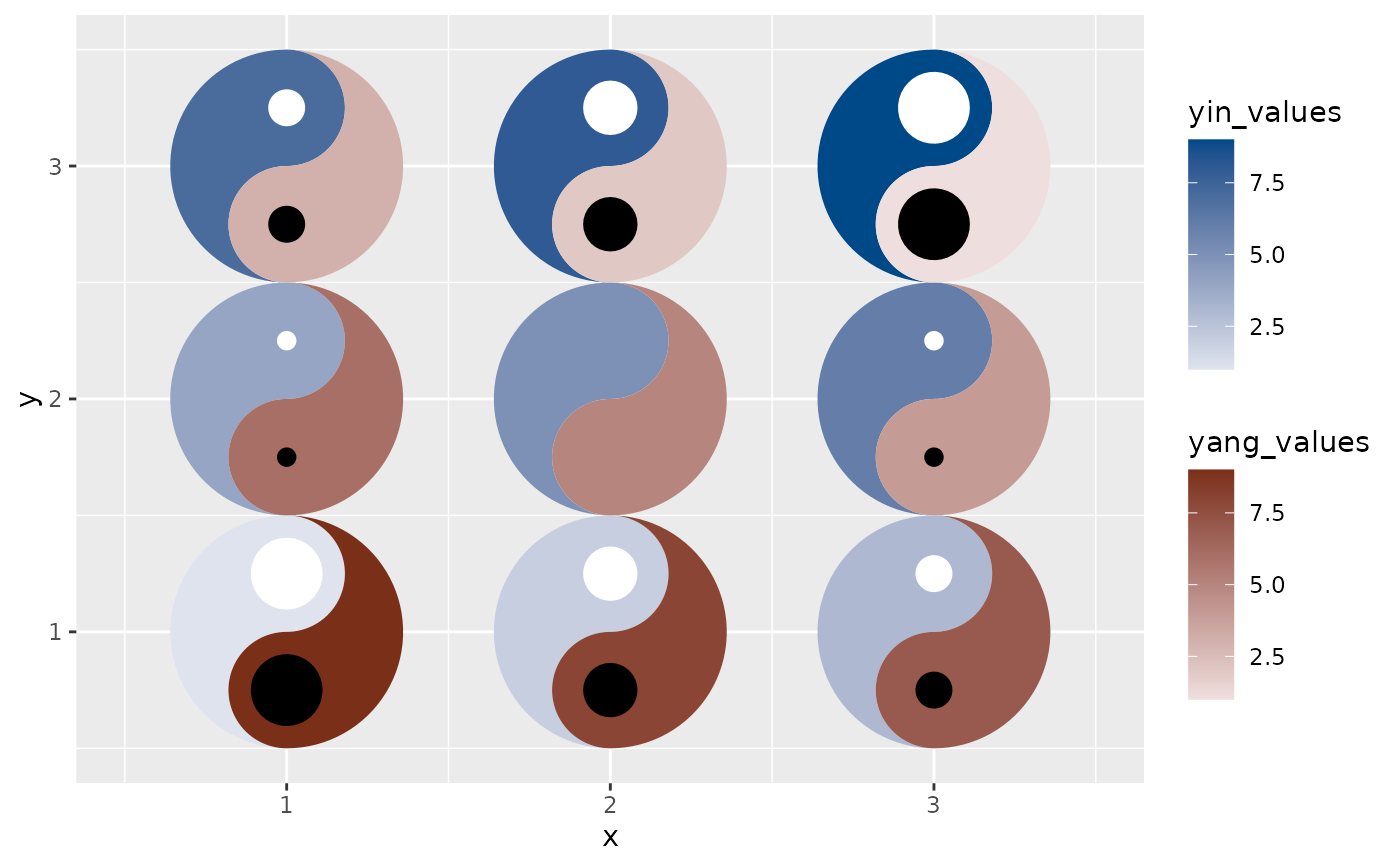

# a matched palette pair, and the gap between the sources as eye size

ggplot(data, aes(x, y)) +
  geom_taichi(yin = yin_values,
              yang = yang_values,
              palette = "balanced",
              shared_limits = TRUE,
              explicit = "difference")


# the same gap as tilt: the most accurate channel available

ggplot(data, aes(x, y)) +
  geom_taichi(yin = yin_values,
              yang = yang_values,
              explicit = "difference",
              explicit_channel = "angle")


# tooltips carry the exact values; needs ggiraph to view

p <- ggplot(data, aes(x, y)) +
  geom_taichi(yin = yin_values, yang = yang_values,
              interactive = TRUE, data_id_by = "source")
if (requireNamespace("ggiraph", quietly = TRUE)) {
  # ggiraph::girafe(ggobj = p)
}
#> NULL
